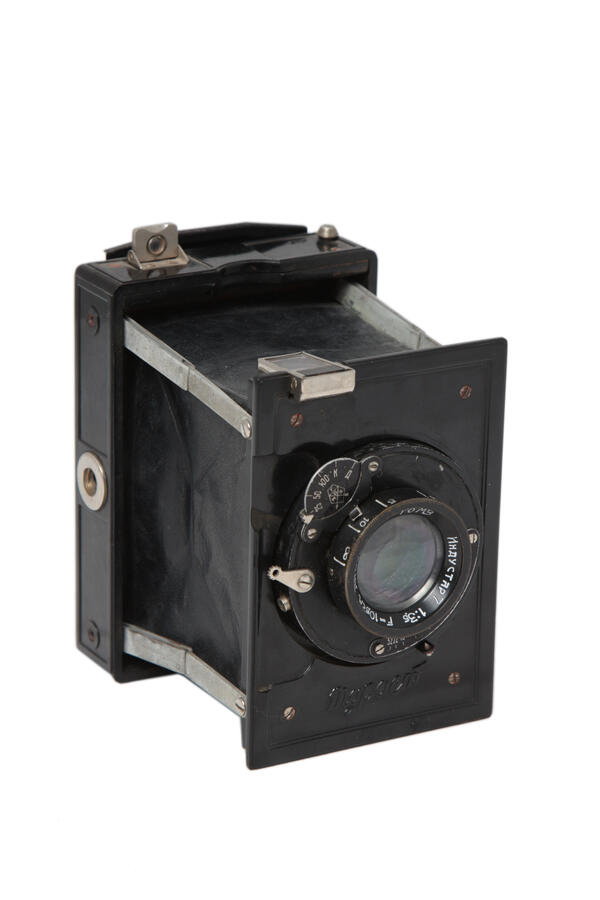

‘Tourist’ is a plate-based medium format flap chamber (foldable) with 6.5×9 cm plates. The plates were loaded into special cassettes made of metal, attached and one-sided. The set included only 6 cassettes. The device body was made of plastic with a retractable front wall. To bring the camera into working condition, it was necessary to pull the front wall (including the lens) and shutter towards yourself. For convenience, there were special semi-circular notches on the short ends of the rear of the case.
Tourist
Время создания
1934
Место создания
Russia, Leningrad
Размер
13x10х6 cm
Техника
Photographic equipment
Коллекция
#1
GOMZ
Tourist
#2
#3
On the back of the camera there was a door locked with a sliding latch. Opening the door would reveal a soft leather hood. Ground glass was put inside the hood.
The Tourist could be focused in two ways: by the distance scale on the lens and by ground glass. Focusing range was from 1m to infinity. The camera had two foldable viewfinders: a frame viewfinder and an optical viewfinder.
The Tourist could be focused in two ways: by the distance scale on the lens and by ground glass. Focusing range was from 1m to infinity. The camera had two foldable viewfinders: a frame viewfinder and an optical viewfinder.
Serial production of these cameras began in Leningrad at the GOMZ (State Optical and Mechanical Plant) in 1934 and continued until 1941. In total, approximately 140,000 copies were produced.
#4
Russian Museum of Photography
